High Pressure Filters

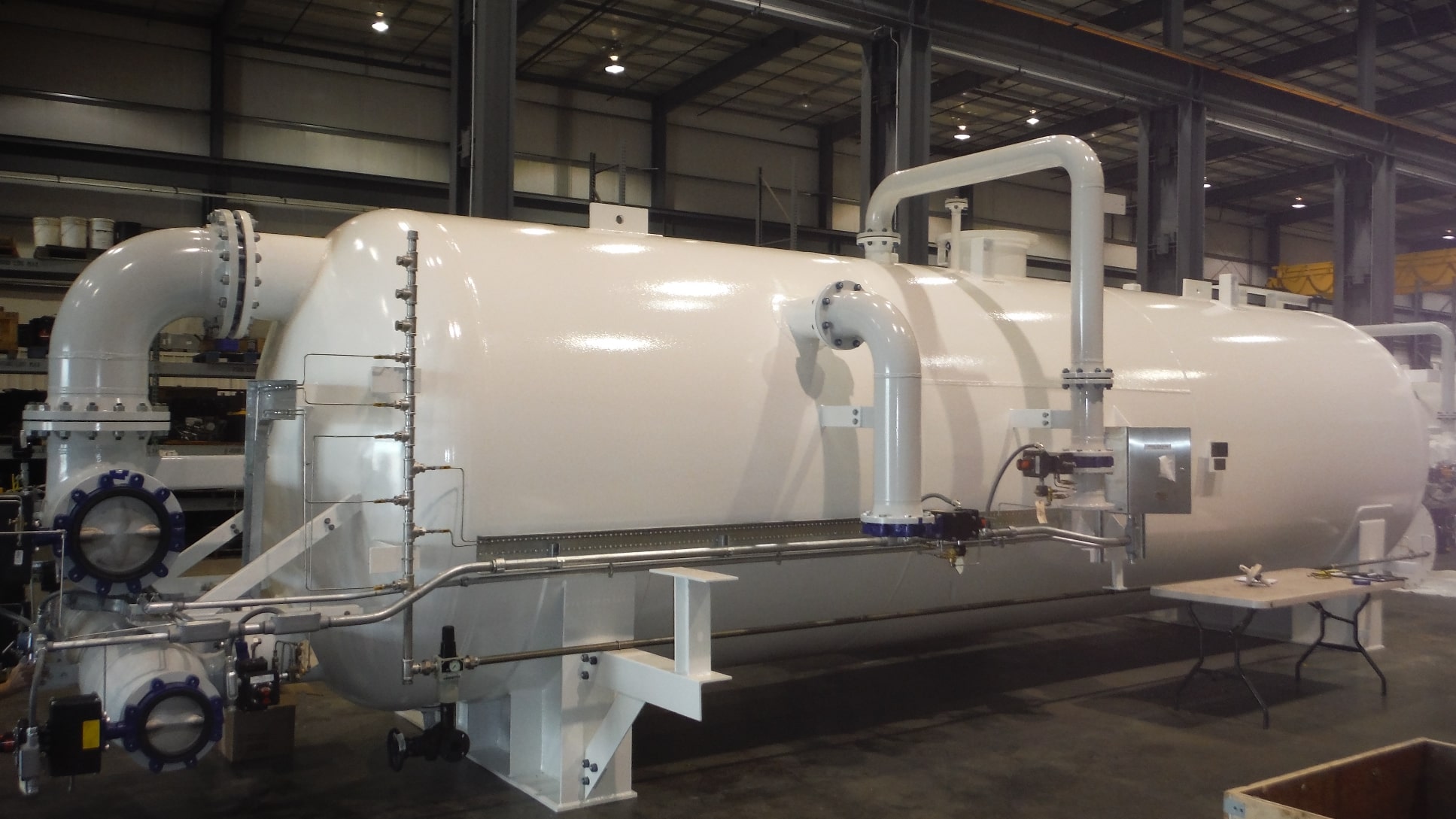

High Pressure Technologies offers a comprehensive range of high pressure filters. These high pressure filters (Suitable for Gas or Liquid) are typically used to protect downstream components and instrumentation from contamination levels beyond the recommended cleanliness target. They help in protecting these important parts or components from destructive failure.High pressure filters styles consist of Super-Mini Tee-Type Filters, Mini In-Line Filters, In-Line Filters, Tee-Type Filters, Multi-Use Compact In-Line Filters (replaceable element) and Spin-On Filters. High pressure filters can support pressures varying from 6,000 psi, 10,000 psi, 20,000 psi, 30,000 psi & 40,000 psi depending on which type of filter is used.
Mini Tee Type Filters Specifications
Super-Mini Tee-Type Filters | Compact Size (2.0″ x 3.75″)
Maximum Pressure Rating of 10,000 PSI, 1.5 GPM / 50 SCFM
Port Connections: 1/4″ NPT
Tee Type Filters Medium & High Pressure Specifications
Tee-Type Medium Pressure Filters
Maximum Pressure Rating of 20,000 PSI, 50 GPM / 4000 SCFM
Available in Aluminum or Stainless Steel
Port Connections: 1/4" to 3/4" NPT, 1/4" to 3/4" Medium Pressure
***For Pressures Above 20k, Please contact HPT
Tee-Type High Pressure Filters
Maximum Pressure Rating of 30,000 PSI, 7.5 GPM / 210 SCFM
Available in Aluminum or Stainless Steel
Port Connections: 1/8" to 1/2" NPT, 1/4" to 9/16" Medium Pressure, 1/4" High Pressure
Mini In Line Type Filters Specifications

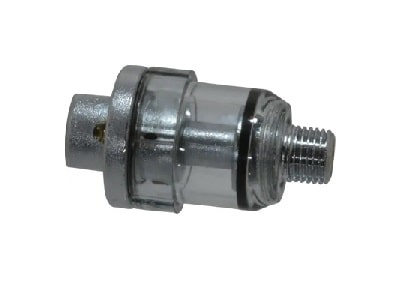

Mini In-Line Filters
Maximum Pressure Rating of 6,000 PSI, 4 GPM / 120 SCFM
Hex 304 S.S. Construction
Port Connections: 1/8" to 3/4" male to female NPT
In Line High Pressure Filters Specifications

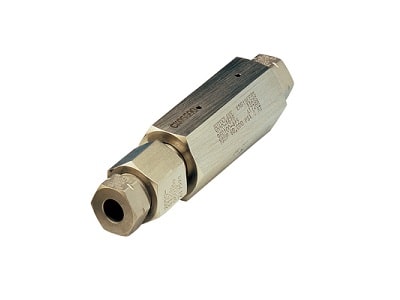

In-Line High Pressure Filters
Maximum Pressure Rating of 30,000 PSI, 40 GPM / 1750 SCFM
Aluminum, Stainless Steel, Monel Construction
Available in Round or Hexagon Style
Port Connections: 1/8" to 3/4" male or female NPT (Pressures Below 15k), 1/4" High Pressure (Pressures above 15k)
Compact Inline Filters Specifications

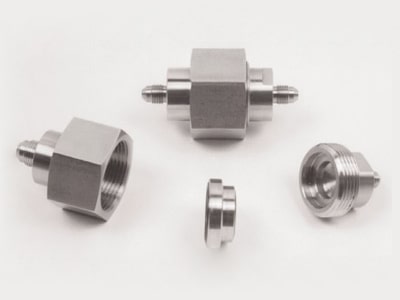

Multi-Use Compact In-Line Filter (Replaceable Element)
Maximum Pressure Rating of 6,000 PSI
Port Connections: 1/8" to 1/2" NPT
PROOF: 9,000 PSI | BURST: 24,000 PSI
Sintered Filters Specifications

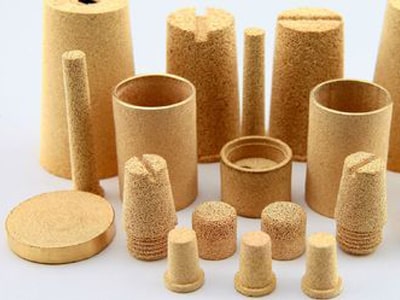

Sintered Bronze Filter Media is a very important addition to filtration technology. It is recognized the world over for its superior and dependable filtration characteristics.
Sintered bronze filter part is created from spherical bronze powder of closely controlled particle size to convey a rigid porous structure of uniform pore dimensions.
Unlike other filtering media, sintered bronze is self-supporting. Being metallic, it is resistant to impact.
Important characteristics of Sintered Bronze Filter
The structure of materials based on individual particles sintered together offers a high porosity material with its most important property, PERMEABILITY. The labyrinth pore structure of SFTPL elements allows:
Filtering of solid particles from gases, liquids and molten plastics.
Separation of liquids from gases,
Damping, throttling,
Drying and Moistening of gases
Uniform distribution of air and gas over large areas:
--- for dispersion of gases in liquids
--- for transportation, drying or moistening of powder or granulates
--- for supporting of moving parts (aerostatic and hydrostatic bearings).
The coefficient of permeability of KPMI sintered bronze elements can be calculated as:
Where,
=Coefficient of permeability of a given grade in Darcy (* 1 darcy=10-8)cm2
Q =Flow of fluid through sintered bronze element in cc/sec.
L =Thickness of filter element in cm
n =Viscosity of fluid in poise
p= Pressure drop across element in dynes/cm2
Design
Filter and porous components are made of spherical bronze powder. It could be offered by small wall thickness and high length, made by gravity sintering process. That can be available in different shape as diameter from 2 to 250 mm, and length from 2 to 1000 mm. Sintered bronze porous material with the thread integrated in the filter.
| OTHER IMPORTANT CHARACTERISTICS | ||||
| CHEMICAL COMPOSITION (NOMINAL) | Cu-89%, Sn-11% | |||
| DENSITY | 4.5 – 6.5 gm/cc | |||
| POROSITY BY VOLUME | Cu-89%, Sn-11% | |||
| DENSITY | 35 – 50% | |||
| COEFFICIENT OF LINEAR EXPANSION | 18.4 x 106 / °C | |||
| TRACTION RESISTANCE | 3 – 6kg/ mm2 | |||
| FILTERING DEGREE | 5µ - 150µ | |||
| LENGTH RANGE | 2mm – 1000mm | |||
| TEMPERATURE SUITABILITY | Up to 200°C in oxidizing atmosphere | |||
