GEOTEXTILE

Allegro is your dedicated partner in sourcing top-tier geotextiles, committed to delivering exceptional quality, reliable service, and tailored solutions for your construction endeavors. We provide expert consultation, recommending the most suitable geosynthetic solutions for your project needs. Our efficient supply chain ensures on-time delivery, supporting seamless project execution.

Industry Specific Attributes

Warranty: 5 Year
Project Solution Capability: Graphic Design, Cross Categories Consolidation
Application: Other
Design Style: Industrial

Other Attributes

Place of Origin : India
Type : Nonwoven Geotextile
Product Name : Polyester Filament Geotextile
Material : Polyester
Color : Black White
Keyword : Polyester filament Geotextile, Long Fiber Geotextile
Length : 50-100m, or Customization
Width : Within 8 m, or customization
Thickness : 0.2-3mm

Specifications

Properties	Test Method	Unit	GT120N	GT150N	GT200N	GT250N	GT300N	GT350N	GT400N
Color	White
Ultimate Tensile Strength, MD	ASTM D4595	kN/m	8.5	11	14	17	19	24	27
Ultimate Tensile Strength, TD	ASTM D4595	kN/m	7.5	10	12	15	17	21	25
Tensile Elongation	ASTM D4595	%	≥40	≥40	≥40	≥40	≥40	≥40	≥40
Grab Tensile Strength, MD	ASTM D4632	N	480	600	850	1000	1250	1450	1700
Grab Tensile Strength, TD	ASTM D4632	N	430	550	700	900	1100	1250	1450
Grab Elongation	ASTM D4632	%	≥40	≥40	≥40	≥40	≥40	≥40	≥40
Trapezoid Tear Strength, MD	ASTM D4533	N	210	300	350	430	490	540	630
Trapezoid Tear Strength, TD	ASTM D4533	N	190	270	330	400	450	510	610
CBR Puncture Strength	ASTM D6241	N	1350	1800	2300	3700	3200	3600	4000
Apparent Opening Size O90	ASTM D4751	mm	0.12	0.11	0.11	0.1	0.09	0.09	0.08
Water Flow Q100	ASTM D4491	L/m2/s	150	130	100	80	70	70	60
Weight	ASTM D5261	g/m2	120	150	200	250	300	350	400
Thickness	ASTM D5199	mm	0.8	1.1	1.5	1.8	2.3	2.5	2.6
Roll Width	-	m	6	6	6	6	6	6	6
Roll Length	-	m	300	200	150	100	100	100	80

Product characteristics

  Anti-aging, the product has very high anti-ultraviolet radiation ability, not easy to degradation.
  High temperature resistance to up to 230℃ maintaining structure stability and original physical properties.
  High flat drainage and vertical permeability.
  High creep resistance.
  Resistance of erosion of chemicals in soil as well as the corrosion of gasoline and diesel etc.
  High elongation under certain stress, thus able to adapt to uneven and irregular bases.

Nonwoven Polyester Geotextile Applications

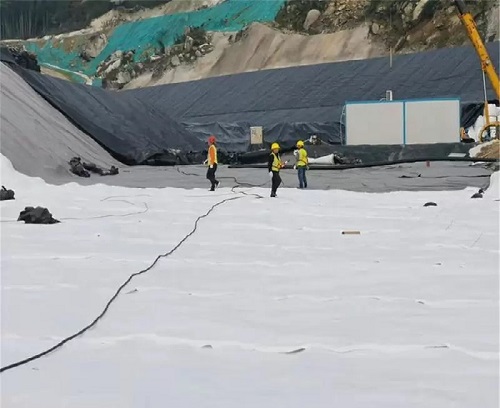

  Reverse filtration of dams and slope protection of water conservancy projects, isolation of channels, and seepage prevention.
  Foundation isolation, filtration, drainage, soil slope, retaining wall and pavement reinforcement, drainage of roads, railways and airport runways.
  Soft foundation treatment of port engineering, reinforcement and drainage of beach dikes, harbour piers and breakwaters.
  Polyester filament geotextile has been widely used in the field of infrastructure construction, and is gradually being used in a wider range of fields.
