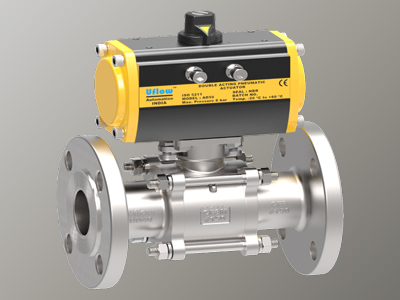

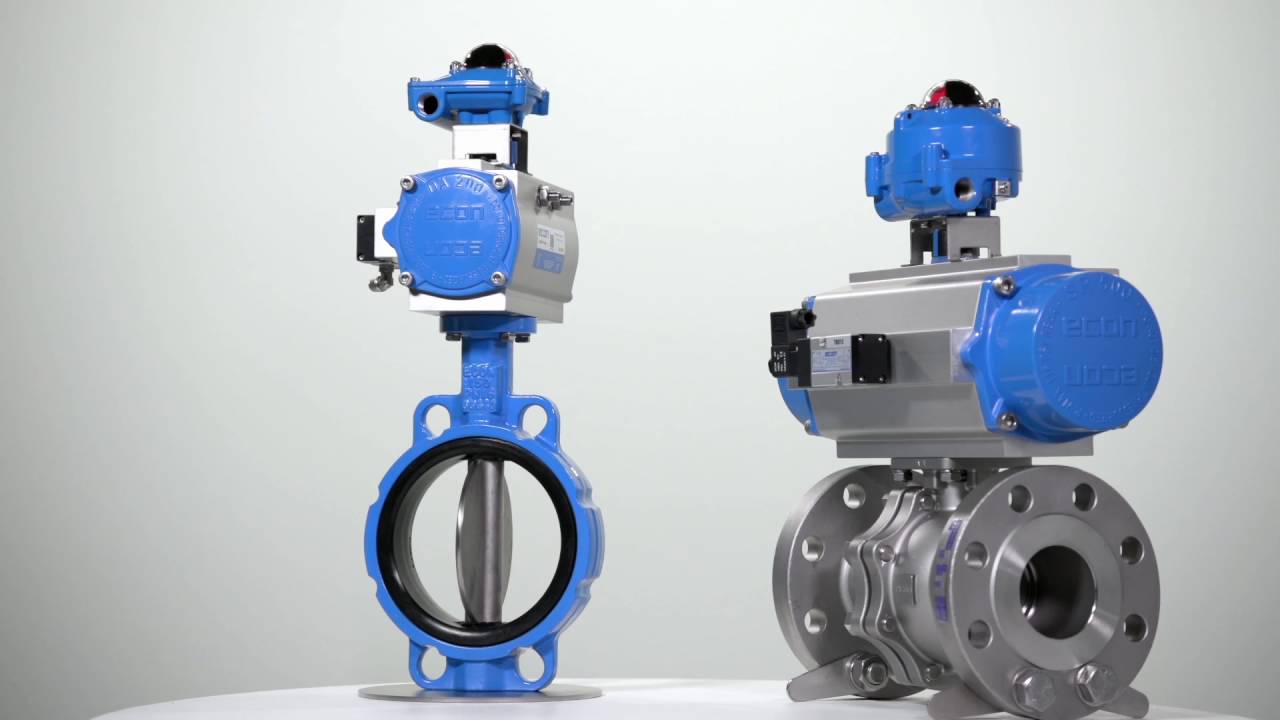

Pneumatic Actuator

Valves

Standards : CE Marked, ISO5211, VDI/VDE 3848 ( NAMUR ), DIN 3337

Lifespan : 1Million Cycles

Operation : 90 Degree and 180 Degree Double Acting or Spring Return (Multi-Turn Pneumatic Actuators Also Available)

Design : Robust Rack & Pinion, Pressure Balanced Spindle, Blow Out Proof Internal Bearings (No External Circlips), Adjustable Travel Stops, Female ' Star Drive ' Output

Torque Range : 1.8NM to 11742NM

Position Controllers : 3-15PSI, 0-10V or 4-20mA Control Inputs, Fully Configurable, 2 Wire Field Bus Compliant Units, Additional Feedback Potentiometers, Safe Area, Intrinsically Safe or Explosion Proof Housings, Stainless Steel Housings

Pilot Solenoid Valves : 24vDC to 240vAC Voltages, Safe Area, Intrinsically Safe or Explosion Proof Coils, Full Certification to ATEX, Direct or Remote Mounting

Switchboxes : Multiple Mechanical SPDT Microswitches, Proximity Sensors, Reed Switches, Safe Area, Intrinsically Safe or Explosion Proof Housings, Full Certification to ATEX, Stainless Steel Housings

Assembly & Test : Instrument Air Piping in Nylon, Copper, Stainless Steel or Monel Tubing, Air Receivers and Control Panels, Integration and Termination of Electrical Cables in Safe Area, Intrinsically Safe or Explosion Proof Housings, Continuity Testing, Calibration of Position Controllers.
