Heat Exchanger
HEAT EXCHANGER

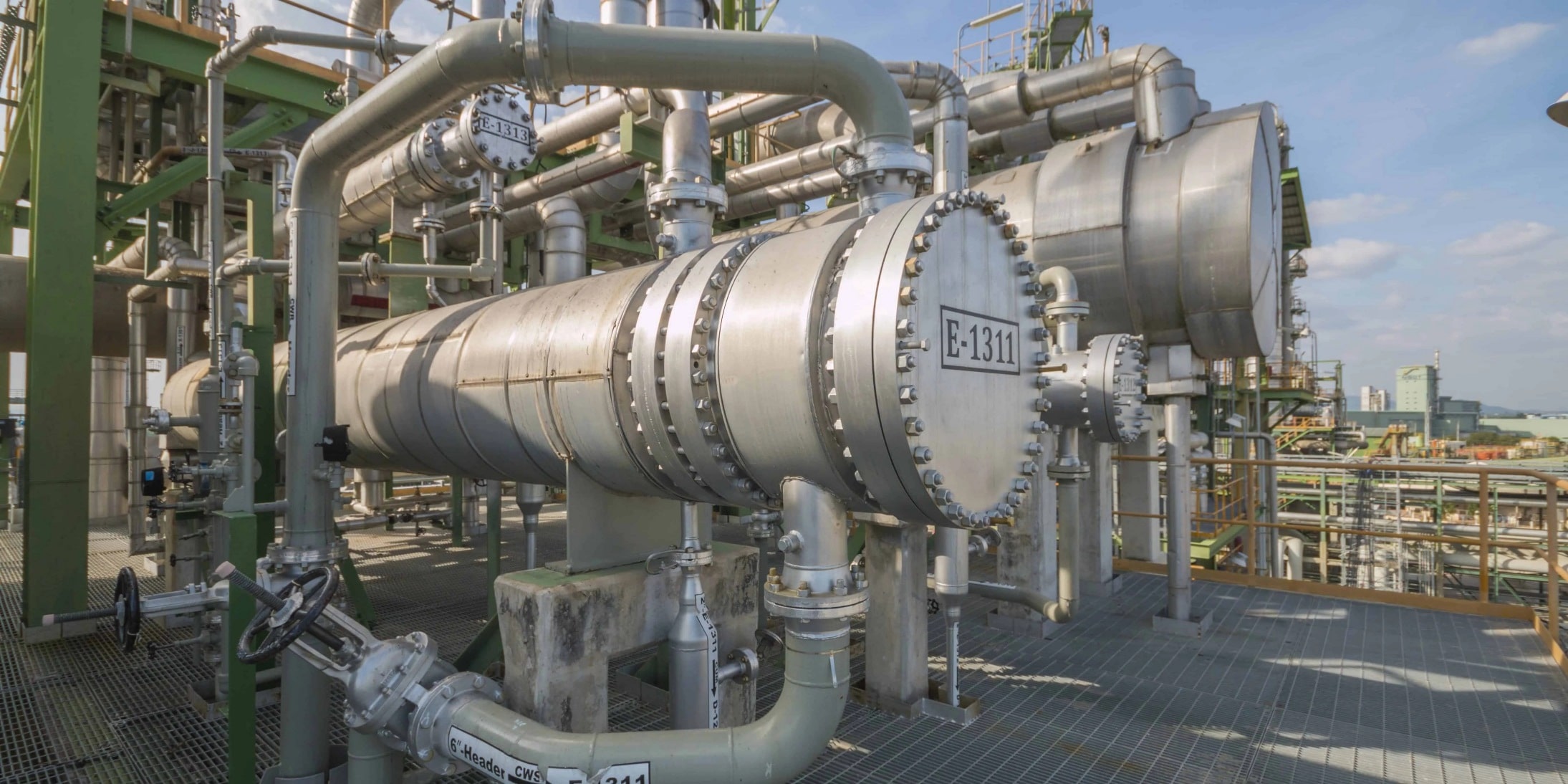

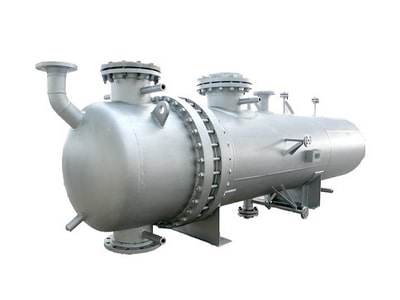

Heat Exchanger Shell & Tube
We provide tubular heat exchanger solutions suited to a wide range of operating conditions: heat exchangers with up to 3 meters in diameter, under vacuum or pressure up to 400 bar, manufactured from steel or other materials (stainless steel, copper alloys, titanium, etc.)...
Specific Or Standard-range Tube Exchangers
U tubes or straight tube in shell
Bare tubes, corrugated and "Shell &Twist .
Simple or double tubular plates
Fixed or removable bundles
Thermal optimisation
Heating and cooling of liquids and gases,
Vaporisers, heaters and condensers (with sub-cooling)
Condensation within condensibles
Water condenser
Multi-function exchanger
Multi-tubes And Double Tube Heat Exchangers
High-quality double pipe (tube-in-tube) and multitube heat exchangers are used for sensitive or complex fluids.
Applications
Low flows
Fouling fluids (high in fiber or pulp)
Maintaining fluid integrity (with suspended particles)
Materials
316 L is standard, other qualities of stainless steel such as 304L ,
Insulated aluminum, stainless steel sheet or sheet metal finishes
Stainless steel or painted steel frames.
Options
Electropolishing
Pickling
Degreasing

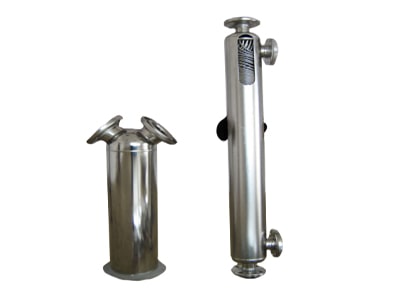

Shell And Coil Heat Exchangers
The spiral-shaped tubular heat exchanger is a compact unit that can be inserted into a steam or superheated water system,Our shell & coil heat exchangers combine a higher heat transfer coefficient (compared to standard shell & tube or plate heat exchangers) and a low running cost
Shell & Coil Types
Exchangers with smooth or corrugated spiral tubes
Large range of standard exchangers: more than 20 sizes
X or T type connections: DN 25 to DN125
Flanges in carbon steel or stainless steel
Service pressure of up to 35 bars tube side and 16 bars shell side
Materials
Coils, tube wall, shell and connections: AISI 321 – AISI 316 stainless steel
Flanges: AISI 321 – AISI 316 stainless steel, carbon steel
Applications
Food processing
Industrial laundries
Beverage industry
Heating & cooling
Pharmaceuticals & fine chemicals
Organic and mineral chemistry
Biotechnology & green chemistry
Mining industries
Petrochemicals
Gas-gas recuperators
Iron-and-steel making & metallurgy
Waste water treatment plants
Gas processing
