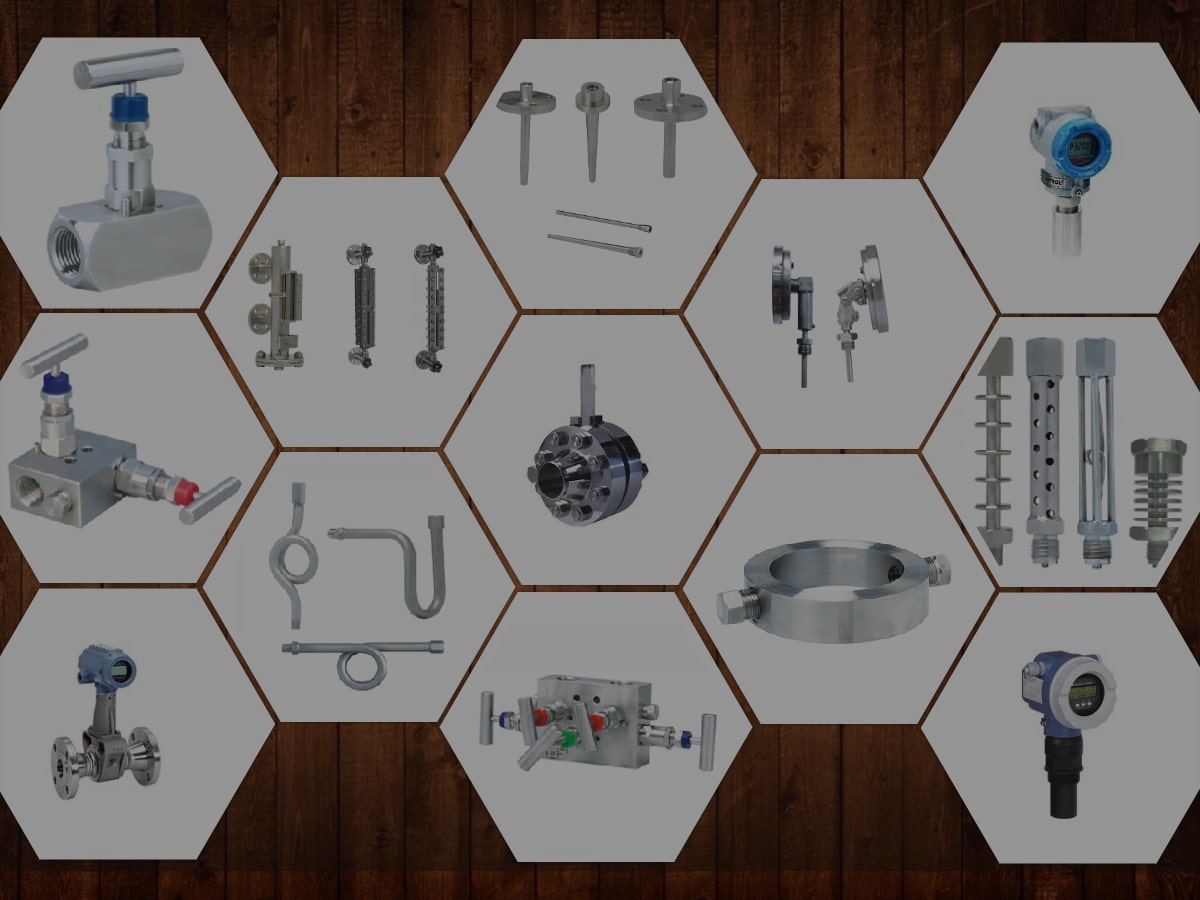

INSTRUMENTS & FITTINGS
| DIAPHRAGM SEALS | ||||
| Range | -1 to 70 kg/cm² & 100 to 400 kg/cm² | |||
| Instrument Connection | 1/2" BSP(F) | |||
| Process Connection Size | 1/4” , 3/8”, 1/2", M20 | |||
| Process Connection Type | NPT, BSP, G, R, Metric etc | |||
| Diaphragm | AISI 316L SS, Monel, Hastelloy C | |||
| Bottom Chamber | AISI 316 SS, Monel, Hastelloy C | |||
| Sealing Gasket | P.T.F.E | |||
| Filling Fluid | Silicon Oil | |||
| Compatible Models | PB, PS, PP, PJ, PBQ | |||
| Options Flushing Ring | (FR) for drainage, PTFE Protection on Diaphragm | |||
| GEARLESS TEMPERATURE GAUGES | ||||
| Mounting | Bottom / Back / Every Angle / Side Mounted | |||
| Dial Size | 75, 100, 150mm | |||
| Accuracy | ±2.0% of F.S | |||
| Case | Alluminum Die Cast / AISI 304 SS | |||
| Case Colour | Black | |||
| Range | -200 to 600°C | |||
| Stem Diameter | 6, 8, 10, 12, 14, 16mm | |||
| Stem Material | AISI 304 SS / AISI 316 SS | |||
| Connection Size | 1/2", 3/4", M22 x 1.5 | |||
| Connection Type | NPT, BSP, G, R, Metric etc | |||
| Option | Glycerine filled | |||
| INSTRUMENTS TUBE FITTINGS | ||||
| Male Connector | Tube End Closure (Cap) | Male Adaptor | ||
| Female Connector | Fitting End Closure | Union Cross | ||
| Union | Union Elbow | Union Tee | ||
| Reducing Union | Male Elbow | Male Branch Tee | ||
| Bulk Head Male Connector | Female Elbow | Male Run Tee | ||
| Bulk Head Female Connector | Reducer | Nut | ||
| Bulk Head Union | Female Adaptor | Ferrule | ||
| GAUGE ACCESSORIES | ||||
| Type | Perforeted / FIN / Capillary | |||
| Process Connection - Male | 1/8" to 1/2" NPT, BSP, G, R, Metric | |||
| Instrument Connection - Female | 1/8" to 1/2" NPT, BSP, G, R, Metric | |||
| Body | AISI 316 SS | |||
| Total length (Including Thread) | 150 mm / 300 mm | |||
| NIDDLE VALVE | ||||
| Mounting Type | Pipe to Pipe (Direct) | |||
| Special Features | 1 Inlet & 1 Outlet | |||
| M.O.C. of Body | AISI 316 SS | |||
| Stem Packing | PTFE, Graphoil | |||
| Pressure Rating | 6000 PSI | |||
| Temperature Rating | 240°C | |||
| Process Connection | 1/8" to 1" | |||
| Thread Type | NPT, BSP, G, R, Metric etc | |||
| Connection (Inst. x Proc.) | Male x Female, Female x Female, Male x Male | |||
| Other MOC | Available on Request | |||
| TECHNICAL DATA SHEET | ||||
| Tube Size | 1/8" to 1" (Imperial) or 6mm to 25mm (Metric) | |||
| Material of Construction | AISI 316SS, AISI 304 SS | |||
| Thread / Tube Size | 1/8" to 1" (Imperial) or 6mm to 25mm (Metric) | |||
| MANIFOLD -2WAYS, 3WAYS, 5WAYS | ||||
| Mounting Type | Pipe to Flange | |||
| Process Side | 1/2" NPT female | |||
| Vent/Test | 1/4" NPT female | |||
| Working Pressure | 6000 PSI | |||
| M.O.C. of Body | AISI 316 SS | |||
| PRESSURE GAUGE | ||||
| Reference Standard | EN 837-1 / IS 3624 | |||
| Nominal Dial Size (mm) | 100, 125, 150, 250 | |||
| Range | -1 to 1600 kg/cm² | |||
| Accuracy | ±1.0% of F.S / ±1.6% of F.S | |||
| Connection Size | 1/4” , 3/8”, 1/2", M20 | |||
| Connection Type | NPT, BSP, G, R, Metric etc | |||
| Socket / Bourdon | AISI 316L SS / Monel | |||
| Case & Bezel | Bayonet AISI 304 SS / AISI 316 SS | |||
| Pointer Aluminum | Zero Adjustable | |||
| Movement | AISI 304 SS / AISI 316 SS | |||
| Window (Glass) | Shatterproof / Plexy / Toughened | |||
| Enclosure Protection | IP 65 / IP 66 / IP 67 | |||
| Options Dampening Liquid | Glycerin Filled | |||
| Ammonia Range | (With Temperature scale) | |||
| THERMOWELLS | ||||
| Construction | Bar Stock - Drilled Type | |||
| Connection Type | Threaded | |||
| Form of Shank | Straight / Straight Reduce Tip / Partial Taper / Full Taper | |||
| Material of Construction | AISI 304 SS / AISI 304L SS / AISI 316 SS / AISI 316L SS | |||
| Process Connection | 3/8" to 1" NPT, BSP, G, R | |||
| Instrument Connection | 3/8" to 1" NPT, BSP, G, R | |||
| Bore Diameter | 6.5, 6.6, 7.0, 8.0, 8.5, 9.0, 10.0, 10.5, 11.0, 13.0, 13.50 | |||
| Type Of Head | Hex, Round | |||
| Ext / Lagging Length | 50mm | |||
| Insertion Length | 1000 mm (Max) | |||
| Options | Wake Frequency Calculation, Plug & Chain in AISI 304 SS | |||
