Sensor & Pressure Sensor

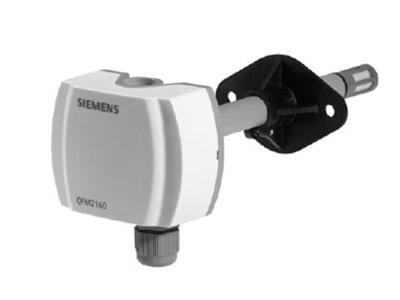

Duct Sensors

Operating voltage AC 24 V / DC 13.5…35 V
Signal output DC 0…10 V / 4…20 mA for relative humidity and temperature
Very high measuring accuracy across the entire measuring range
Function test
Capacitive humidity measurement
Range of use −40…+70 °C / 0…100 % r. h. with LCD display −25…+70 °C / 0…100 % r.h.

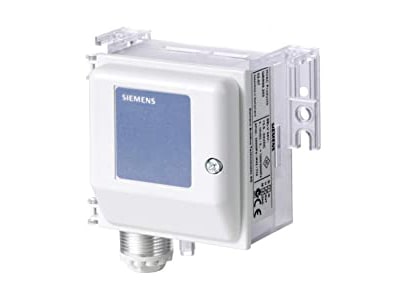

Differential pressure sensor

Pressure-linear characteristic with selectable pressure measuring range
Operating voltage AC 24 V or DC 13.5…33 V
Output signal DC 0…10 V
Zero-point adjustment
Simple and fast mounting thanks to integrated mounting brackets in the housing
Maintenance free
Calibrated and temperature-compensated measuring signal Supplied with tubing connection set Application

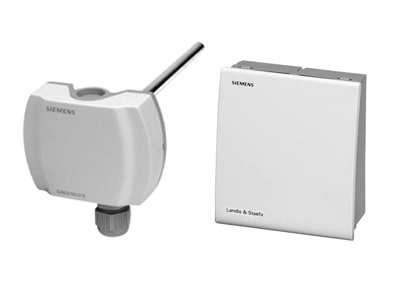

Immersion Temperature Sensors

Active sensors for acquiring the water temperature in pipes and tanks
Operating voltage AC 24 V or DC 13.5…35 V
Signal output DC 0…10 V or 4…20 mA
The sensors are for use in ventilation and air conditioning plants for:
Controlling or limiting the flow temperature
Limiting the return temperature
Controlling the DHW temperature

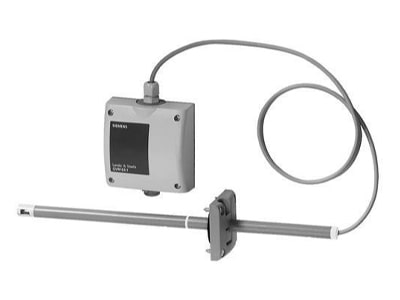

Air velocity sensor

This sensor is used to control the air velocity to a constant value, or to balance out pressure fluctuations (supply or extract air control), or to monitor the flow in air ducts.
It primarily is used for modulating fan control in primary plants to set the basic volume flow.

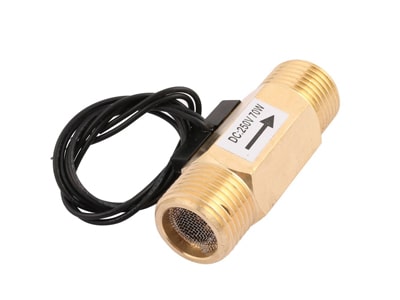

Flow Switch

Contact load: max. AC 230 V, 1 A, 26 VA
DC 48 V, 1 A, 20 W
    - Nominal pressure PN10
    - Manual contact setting (NO/NC contact)
    - Housing protection type IP 65 / Protection class II
    - Maintenance free

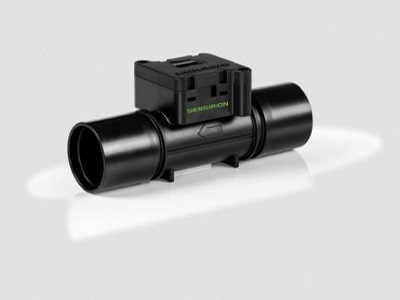

Flow Sensor

Vortex flow sensor made from fiber-glass-reinforced plastic
Output signal: DC 0…10 V or 4…20 mA
Flow range: 1.8 …150 l/min
Used for temperature ranges: -15…+125 °C
Operating voltage: DC 18…33 V (QVE2100…) or 11.5…33 V (QVE2000…)
Temperature-insensitive measuring principle
No moving parts
Low pressure loss
Insensitive to soiling

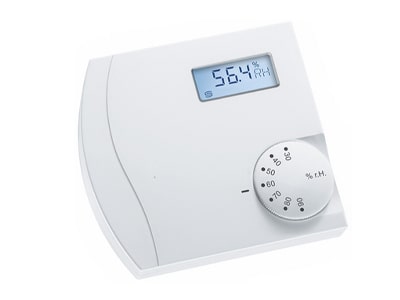

Room Hygrostats

Hygrostat with single-pole microswitch
Humidity measuring element made of stabilized plastic texture
Setpoint knob for the upper switching point
For controlling humidification equipment
For controlling dehumidification equipment
For mounting directly on the wall or on a recessed conduit box

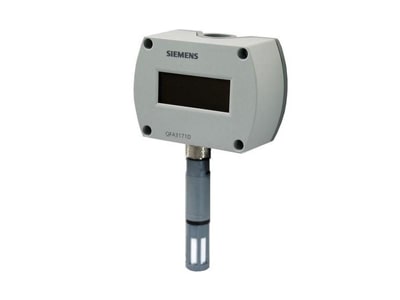

Room Sensors

Operating voltage AC 24 V / DC 13.5…35 V
Signal output DC 0…10 V / 4…20 mA for relative humidity and temperature
Very high measuring accuracy across the entire measuring range
Capacitive humidity measurement
Function test
Range of use 40…70 °C / 0…100 % r. h. with LCD display 25…+70 °C / 0…100 % r. h.

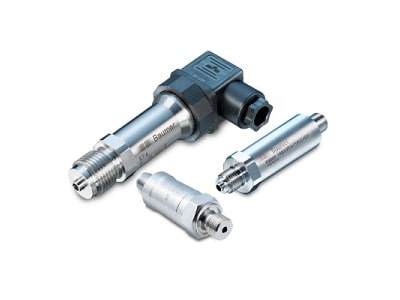

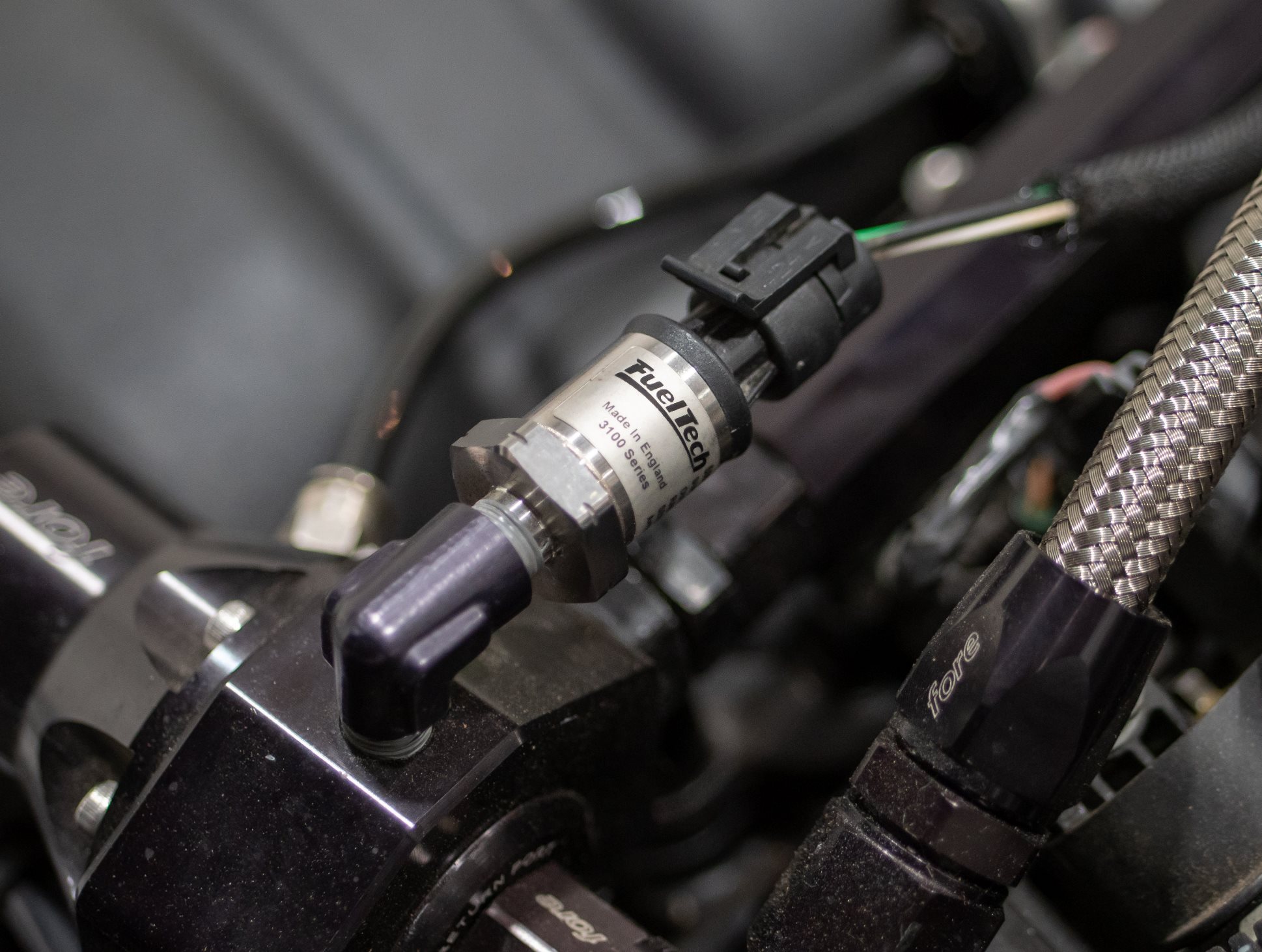

Pressure Sensors

High-precision measuring
Measuring range 0 to 60 bar relative
Supply voltage AC 24 V / DC 12…33 V or DC 7…33 V
DC 0 …10 V or DC 4…20 mA output signal
Measurement unaffected by changes in temperature
High temperature stability
Connection: external thread G ½”, inside thread M5
Maintenance free thanks to outstanding long-term stability
High overload resistance
Robust and compact construction

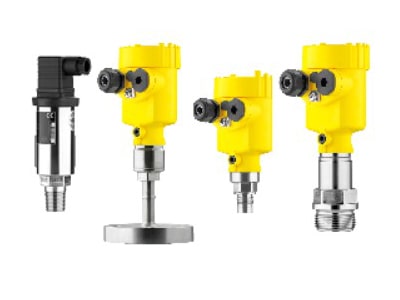

Process pressure measurement

Pressure transmitters handle a very wide measuring range: from vacuum to extreme pressures
High operational reliability through integrated self-monitoring
High overload resistance, long-term stability and thermal shock compensation of the dry, ceramic-capacitive measuring cell.

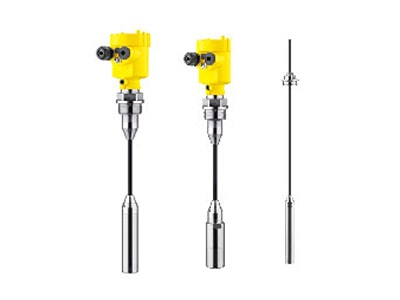

Hydrostatic pressure measurement

The temperature of the medium can also be measured
Hydrostatic pressure measurement is not affected by foam generation or vessel internals
Precise adaptation to the process through selection of appropriate measuring cells and housing materials

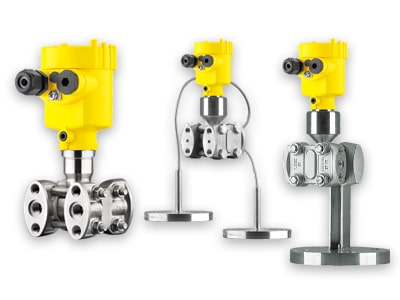

Differential pressure measurement

Wide application spectrum thanks to large selection of measuring ranges and process fittings
Differential pressure transducers can detect differential pressures of just a few mbar
With an installed chemical seal, media with extreme temperatures can also be safely and reliably measured

Safety Limit Thermostats

Safety temperature limitation, with single-pole changeover microswitch
Switching capacity contact connection 11-12 16 (2.5) A, AC 250 V Terminal for alarm contact connection 11-13 2 (0.4) A, AC 250 V
Time constant conforming to DIN EN 14597
3 mounting choices: pipe, pocket or wall mounting
Switch-off temperature can be checked through the viewing window in the housing
Compensation of ambient temperature at switching mechanism and capillary tube
Fail-safe design, rupture of the capillary tube causes contact connection 11-12 to open
Internal reset facility covered by removable threaded nipple
IP43 or IP65 protection class
Push-in terminals for fast installation

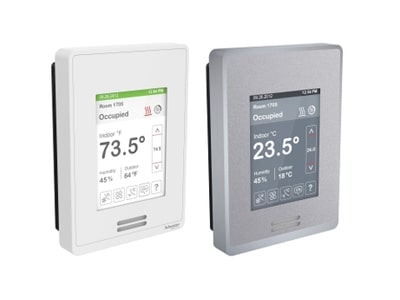

Room Temperature Controllers

Output for on / off valve actuator
Outputs for three-speed fan
Control depending on the room or return air temperature (RCC10) Automatic heating / cooling changeover
Operating modes of RCC10: normal, energy saving and frost protection mode or OFF
Operating modes of RCC10.1: normal and energy saving mode or OFF
Operating mode changeover input for remote control
Function for avoiding damage resulting from moisture (RCC10.1)
Selectable control parameters (RCC10)
Operating voltage AC 230 V
