POLYPROPYLENE BIAXIAL GEOGRID / GEOTEXTILE

At Allegro, we specialize in sourcing and distributing premium geogrids and geotextiles for a wide spectrum of construction and civil engineering projects. We offer a comprehensive range of geosynthetic solutions crafted from high-grade materials, ensuring durability, strength, and reliability in diverse applications. Our team collaborates closely with engineers, contractors, and project managers to provide customized geosynthetic recommendations, meeting specific project requirements and ensuring optimal performance. With a robust supply network, we ensure timely delivery of materials, guaranteeing project timelines are met without compromise.

Description

Raw Material: PP
Types: 20/20kn-150g, 30/30kn-150g, 40/40kn-150g,
Width: 3.95m
Mesh Size: 30-40mm
Length: 50m
Color: TBD

Benefits

  Reduce digging soil and filling material
  Reduce different settlement, make stabilize the soil structure
  Extend life time, reduce late maintenance cost

Specifications

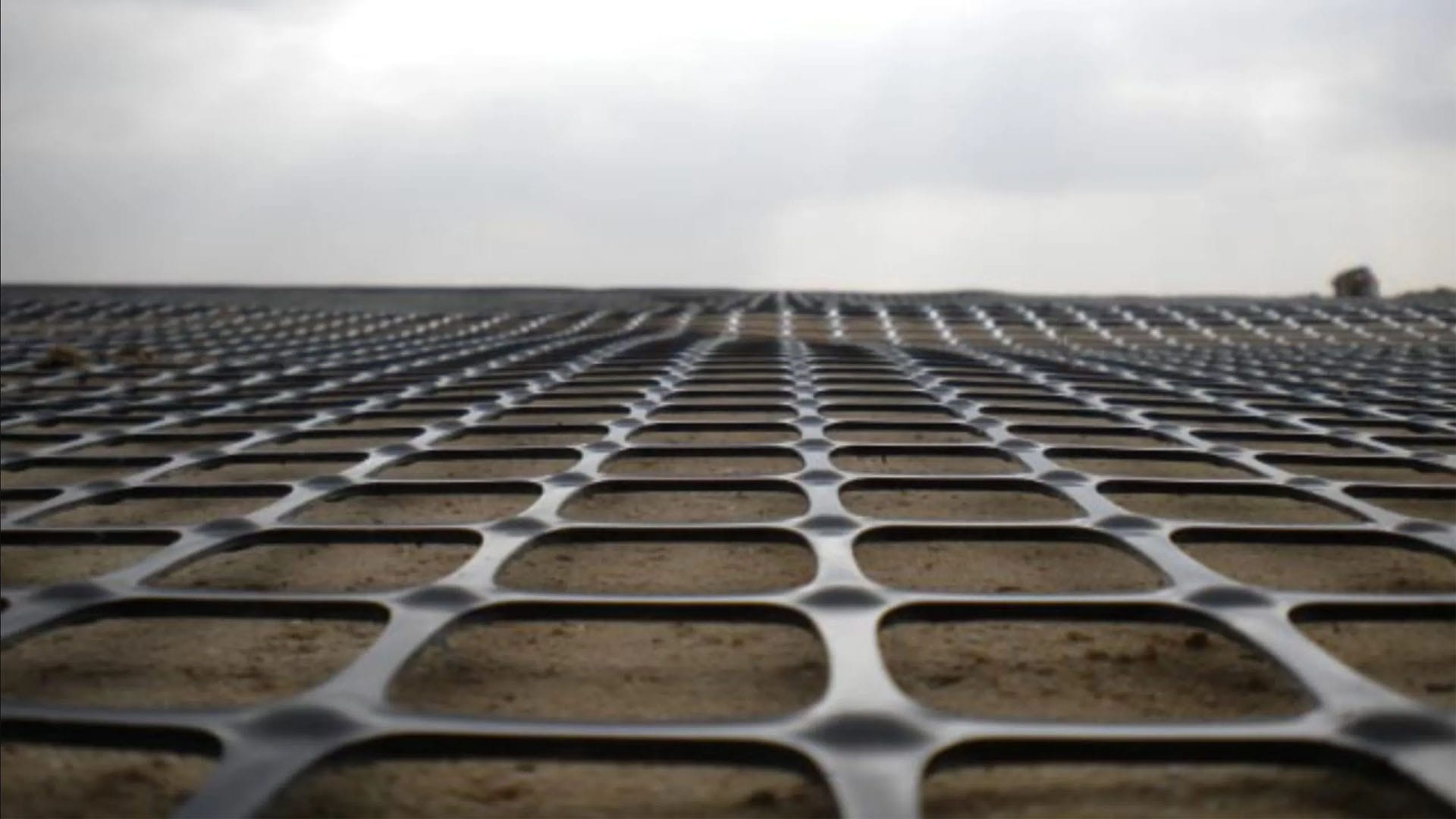

PP BIAXIAL GEOGRID
PROPERTY		TEST METHOD	PP 20-20	PP 30-30	PP 40-40
Ulimate tensile strength(kn/m)	MD	ASTM D6637	20	30	30
	CD		20	30	30
Tensile Strength at 2% elongation	MD		7	11	14
	CD		7	11	14
Tensile Strength at 5% elongation	MD		14	21	28
	CD		14	21	28
Elongation at max load (%)	MD		13
	CD		13
Minimum Carbon Black	ASTM D4218		2
NON-WOVEN GEOTEXTILE
Raw Material		PET or PP
Mass per unit area(g/m2)		120, 150 or 200
Roll Size
Roll width(m)		3.95
Roll length(m)		50

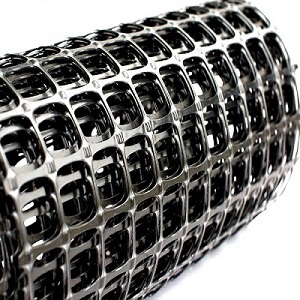

POLYPROPYLENE GEOGRID

Raw Material: Polypropylene
Type range : 15/15kn-50/50kn
Mesh Size: 31*31-39*39mm
Width: 1-6m
Length: 50m-100m
Color: TBD

Product Introduction

Polypropylene geogrid is made of Polypropylene, extrusion, forming and punching before longitudinal and lateral stretching.

Specifications

PROPERTY		TEST METHOD	PP 15-15	PP 20-20	PP 30-30	PP 40-40	PP 50-50	BX 1100	BX 1200
Ulimate tensile strength(kn/m)	MD	ASTMD 6637	15	20	30	40	50	12.4	19.2
	CD		15	20	30	40	50	19.0	28.8
Elongation at max load (%)	MD		13
	CD		13
Tensile strength at 2% elongation(kn/m)	MD		6	7	11	14	18	4.1	6
	CD		6	7	11	14	18	6.6	9
Tensile strength at 5% elongation(kn/m)	MD		11	14	21	28	35	8.5	11.8
	CD		11	14	21	28	35	13.4	19.6
Minimum Carbon Black( %)		2
Mesh Size (mm)		31*31 33*33 36*36 39*39
Junction Efficiency( %)		95
Roll width(m)		2/3/3.95/5/5.9
Roll length(m)		50/75/100
