Temperature Measurement

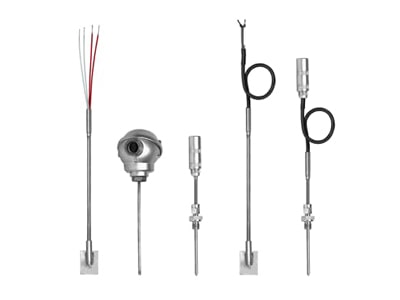

Cable Thermometers & Compact Thermometers

Heat and corrosion resistant sheath material of MI-cable for use in the temperature range of -196 up to 1100°C with RTD and TC sensors
Process connections for Plug-In, screw-In or Surface measurement
Electrical connection is possible with head type F, standard- or Lemo-plugs or different cables
Approvals for explosion protection
    – ATEX Ex ia
    – ATEX Ex ib
    – ATEX Ex n
    – IECEx ia

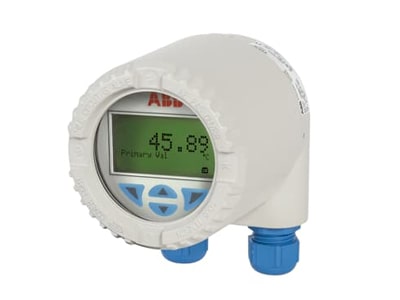

Field Mount Temperature Transmitter

Universal sensor input
Various sensor error-calibration possibilities
Sensor backup / automatic sensor redundancy switching (2 x Pt100 3-wire connection)
Output signal
    – 4 to 20 mA, HART
    – PROFIBUS PA 3.01
    – FOUNDATION Fieldbus ITK 5.2
Accuracy 0.1 %, long-term stability 0.05 % per year
Wire break / corrosion monitoring (NE89)
IP 66 / IP 67, NEMA 4X aluminum or stainless steel field-mount housing
Approvals for explosion protection
    – ATEX, IECEx, zone 0
    – FM / CSA
    – GOST

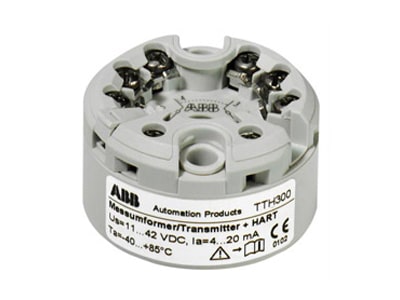

Head Mount Temperature Transmitter

Universal sensor input (RTD, thermocouple, Ω, mV)
Various sensor error-calibration possibilities(One point, two point)
Output signal( 4 to 20 mA, HART)
Accuracy 0.1 %, long-term stability 0.05 % per year.
Wire break / corrosion monitoring (NE89).
Extended diagnostics (NE107)
Approvals for explosion protection
    – ATEX, IECEx, zone 0
    – FM / CSA
    – GOST

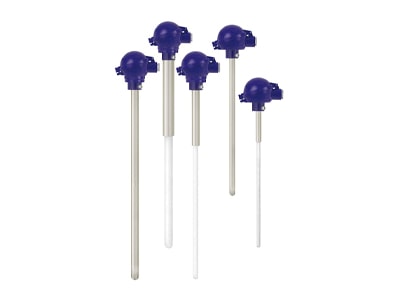

High Temperature Thermometer

Supports numerous applications
    – In accordance with EN 50446 and also available in accordance with ABB standard
Connection heads
    – AUZ: Aluminum, with hinged cover
    – AUZH: Aluminum with upper hinged cover
    – BUZ: Aluminum, with hinged cover
    – BUZH: Aluminum, with upper hinged cover
    – Other heads in various forms and materials
    – Transmitter in connection head (4…20 mA HART, FF, PA)
Process connections
    – Stop flange with counterflange
    – threaded socket
    – welded standard flange

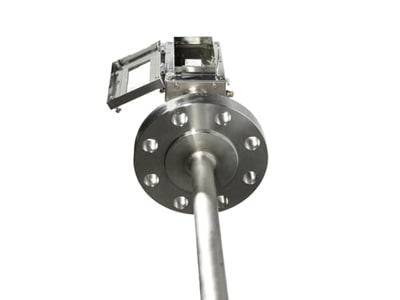

Multipoint Thermometers

Compact thermocouple for restricted access.
Flexible thermocouple for use in existing thermowell.
Guided tube thermocouple for replaceable sensors in operation.
Medusa thermocouple for individually routed thermocouple sensors.
Medusa RTD for individually routed RTD sensors.

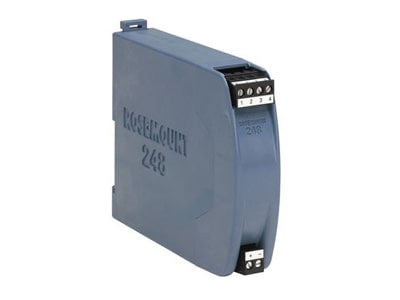

Rail Mount Temperature Transmitter

Universal sensor input
    – RTD, thermocouple, Ω, mV
Various sensor error-calibration possibilities
    – One point, two point
Output signal
    – 4 to 20 mA, HART
Accuracy 0.1 %, long-term stability 0.05 % per year
Wire break / corrosion monitoring (NE89)
Extended diagnostics (NE107)
Approvals for explosion protection
    – ATEX, IECEx, zone 0
    – FM / CSA
    – GOST

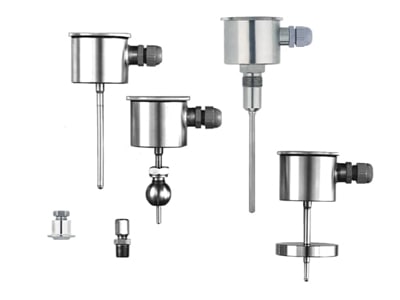

Sanitary Application Thermometers

Temperature range
    – -50 to +250 °C (-58 to +482 °F)
Max. pressure
    – 10 bar / 140 bar (145 psi / 2030 psi)
Output signal
    – Sensorsignal, 4 to 20 mA ,HART
Response time
    – short … medium

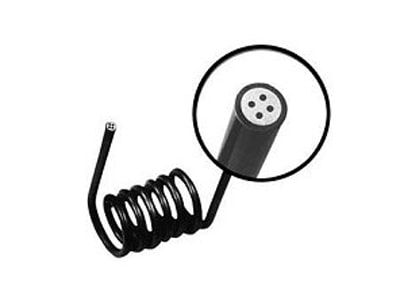

Temperature Cable & Wires

Mineral insulated cables have an outer sheath of metal with 2 to 8 inner conductors. The insulation material is made from a highly compressed metal-oxide powder (preferably MgO or Al2O3).
Mineral insulated thermocouple cables have inner conductors of thermocouple base material. Mineral insulated cables for RTDs have inner conductors of copper, copper-nickel alloys, nickel, nickel-chromium or nickel-plated copper.
Mineral insulated cables are designed for high-temperature applications and are used wherever there are particularly strict requirements with regard to mechanical, chemical and electrical stability.

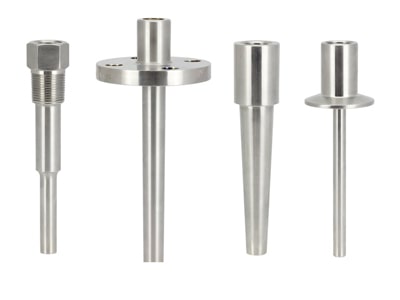

Thermowells

Engineered to international standards
    – ISO19001:2000
Manufactured with full material control
    – 3.1 certification
    – Traceability to producing mill
    – X-Ray PMI available
Documented to Oil & Gas industry standards
    – Documents compiled on electronic media
    – Material certification
    – Welding certification
Applications
    – Oil & Gas downstream
    – Oil & Gas upstream
    – Arduous applications requiring high specification
