Steam Trap & Steam Pipe Line Accesories

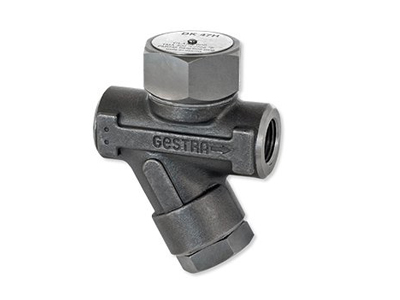

Thermodynamic Steam Traps

Steam traps for draining steam pipes, trace heaters and steam systems

These steam traps work on the basis of a simple thermodynamic principle. Incoming condensate lifts the valve disk of the regulator to the open position, while steam causes it to close immediately. The traps in the DK series are correspondingly simple in structure, feature a small, compact body and are low in cost.

Uses

Compact steam trap for draining heating processes with small load fluctuations. Especially recommended for use in:
  Saturated steam pipes
  Superheated steam pipes
  Trace heaters
  Air heaters

Ball-Float Steam Traps UNA

Steam traps with ball float for removing condensate from steam, cold condensate or distillates without banking-up.

The traps with the tried and tested rolling ball seal work with exceptionally low friction and therefore have very low actuating forces. They are durable and guarantee maximum tightness.

Uses

Universal steam trap for virtually all requirements. Especially recommended for the drainage of
  Steam-regulated heat exchangers
  Systems with a high condensate flowrate
  Steam manifolds
  Steam driers, gas driers, cyclone separators
  Systems with very small operating pressures, very low differential pressure and extremely variable operating conditions
  Vacuum systems
  Gas and compressed air lines
  Drying cylinders
