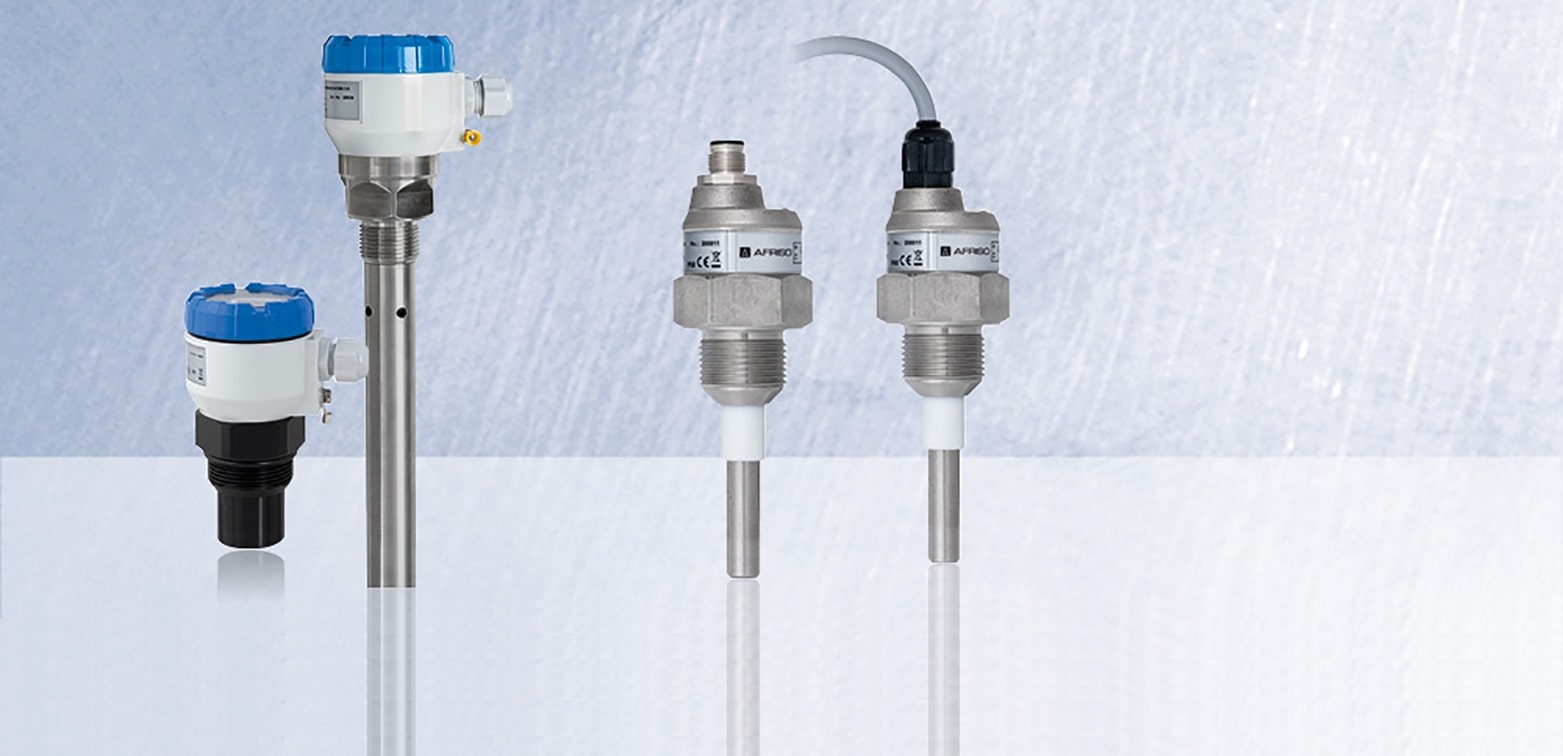

LEVEL MEASUREMENT

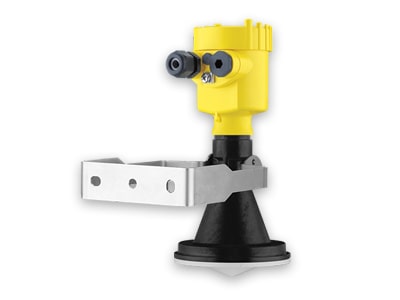

Radar sensor for continuous level measurement of liquids
Exact measuring results independent of pressure, temperature, gas and steam
High plant availability, because wear and maintenance-free
Maintenance-free operation through non-contact measuring principle
Measuring-range—Distance 35 m
Process-temperature 196 … 450 °C
Process-pressure -1 … 160 bar

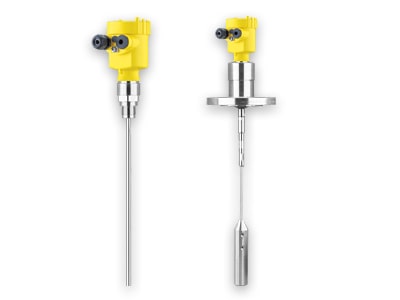

Guided Wave Radar Continuous level measurement
The guided adjustment enables a simple, time-saving and reliable setup
Shortenable probes offer a simple standardisation and highest flexibility in the planning
Comprehensive diagnostic possibilities ensure a maintenance-free operation and hence a high plant availability
Measuring-range—Distance 15 m
Process-temperature -40 … 80 °C
Process-pressure -0.2 … 1 bar

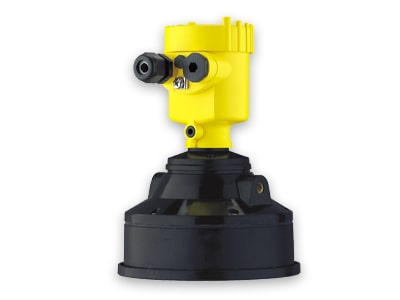

Ultrasonic sensor for continuous level measurement
Proven measurement technology for standard applications
Maintenance-free operation through non-contact measuring principle
Reliable measurement independent of product features

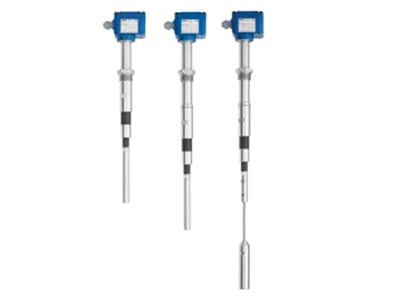

Capacitive continuous level Measurement
Savings through simple mounting and setup
Long lifetime and low maintenance requirement through robust mechanical construction
Maximum utilization of the vessel because measurement over the complete probe length

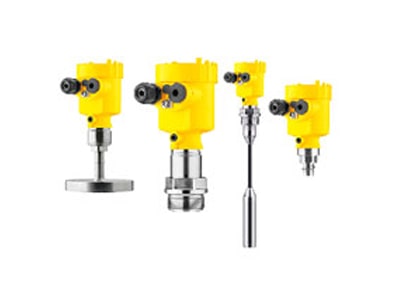

Hydrostatic continuous level transmitter
Simple adaptation thanks to verious configuration options
Reliable measurement with temperatures up to 400 °C
Reliable measurement independent of foam generation or tank installations
continuous monitoring of process pressure in reactors
exhaust pressure of flue gas, e.g. in waste incineration
pipeline pressure in dairies
steam pressure control in steam drums
pressure monitoring in LNG tanks
Differential Continuous level measurement
High reliability through integrated overload diaphragm
Measurement of very low differential pressures through high precision measured value detection
Versatile use through a variety of measuring ranges and process fitting.

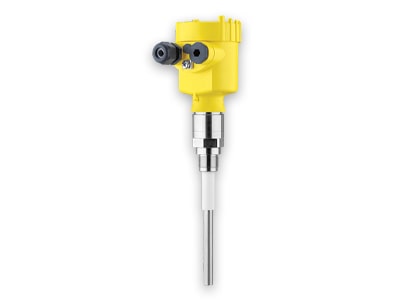

Capacitive rod probe for level detection
High flexibility through shortenable probe
Long lifetime and low maintenance requirement through robust mechanical construction
Universal use in all products
Measuring-range—Distance6 m
Process-temperature-50 … 200 °C
Process-pressure-1 … 64 bar
Threaded-connection≥ G½, ≥ ½ NPT
Flange-connection≥ DN25, ≥ 1″
Seal-material-no media contact

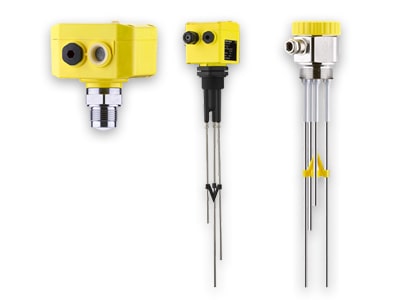

Conductive Point Level detection
Optimum cleanability through front-flush mounting
Maintenance-free operation through probe insensitive to buildup
Time and cost-saving setup without adjustment with medium

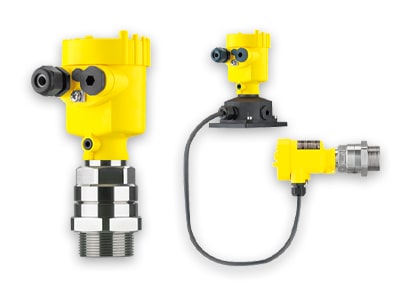

Radar point Level detection
Separate instrument version enables mounting in installation positions difficult to access
Reliable measurement even with very abrasive products
Reliable measurement even with changing product features
Typical applications are the detection of bulk solids in silos, bunkers and crushers as well as of liquids in tubes and vessels.
The non-contact measuring principle has no direct contact to the medium and guarantees wear and maintenance-free permanent operation.

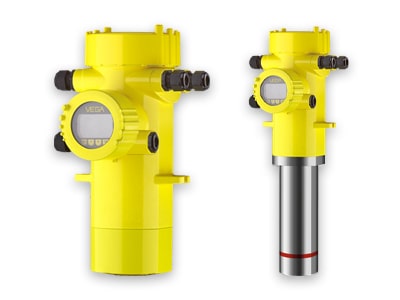

Radiometric point level detection
Maximum operational reliability even in the harshest environments
Measurement is unaffected by pressure, temperature and product corrosiveness
Measuring system can be installed on outside of vessel during ongoing production
Simple retrofitting during production processes
Exact measuring results independent of process conditions
High plant availability through non-contact measurement

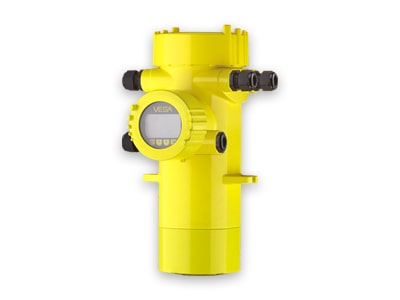

Density measurement using the radiometric
Simple retrofitting during ongoing production processes
High plant availability thanks to non-contact measurement
Exact measuring results independent of process conditions
