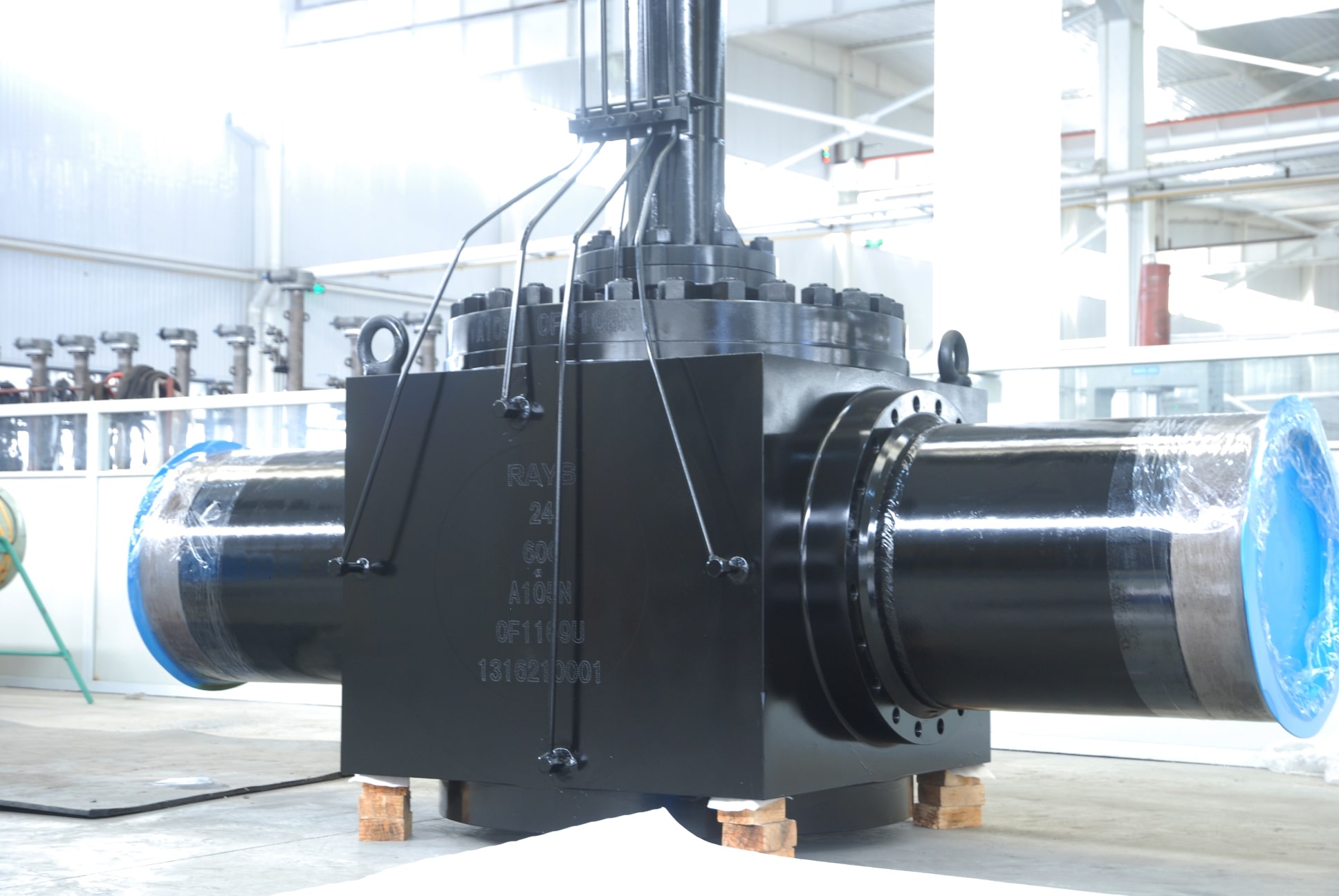

Top Entry Ball Valve

Valves

Body Materials : Carbon Steel ASTM A105N and ASTM A216WCB, Stainless Steel ASTM A182F316 and ASTM 351CF8M, Low Temperature Carbon Steel ASTM A350LF2 and ASTM A352LCB, Hastelloy, Monel and Titanium

Trim Materials : Stainless Steel ASTM A182F316, Carbon Steel/ENP and Bronze

Seat Materials : PTFE, R-PTFE, PEEK, POM, Ceramic, UHMWPE and Metal to Metal

Design Specifications : BS5351, ISO5211, Anti-Static and Fire safe to BS6755 pt. 2 and API607 rev. 4.

Pressure Ratings : 150lb to 600lb

End Connections : Flanged (All Configurations), Butt Weld, Socket Weld and Screwed.

Size Range : 1/2" (DN15) to 12" (DN300)

Other Materials and Sizes : Available to Special Order
