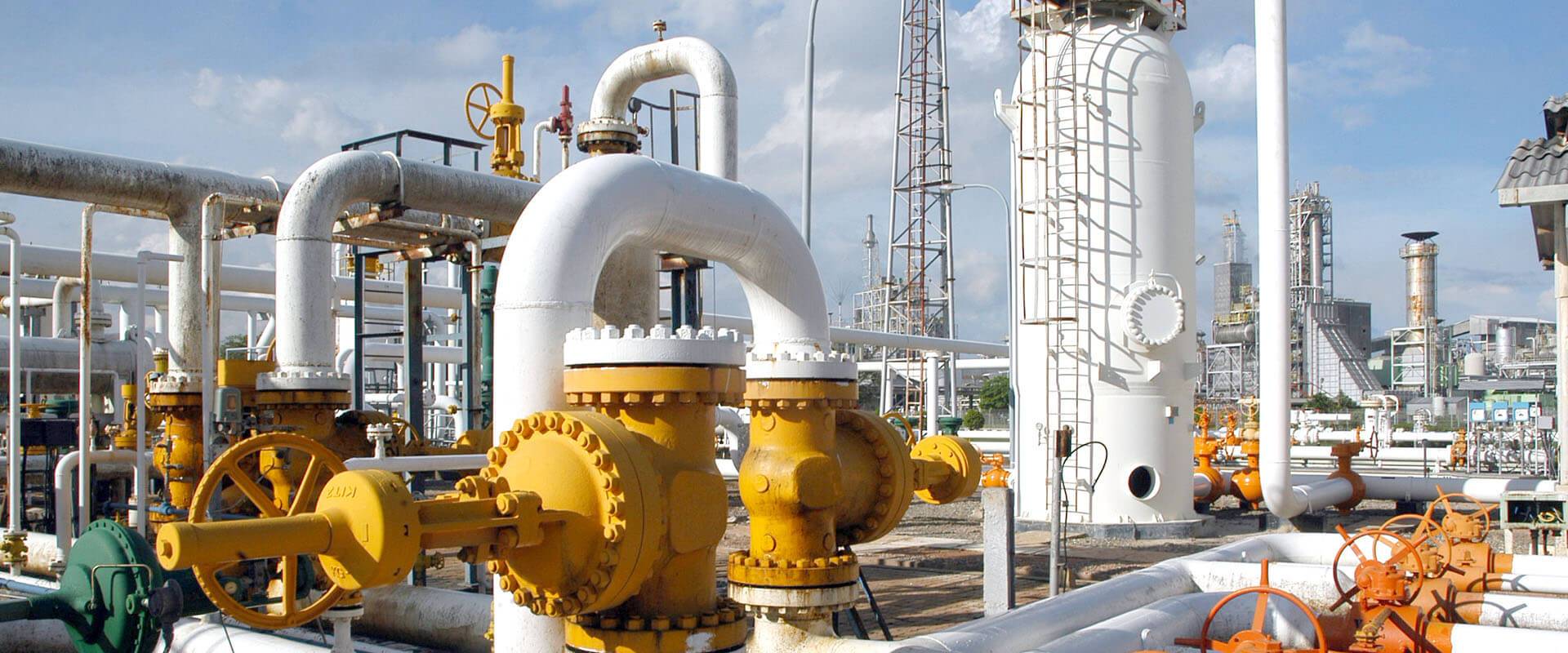

Oil and Gas Field Filters

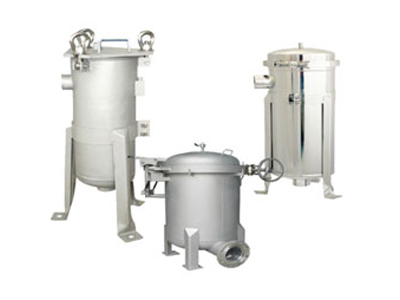

Backwash Drum Filter

The Backwash Drum Filter is based on the Filterautomat’s filtration and backwash principle. However, a more individual choice of materials for more demanding mediums can be realized.

Specification
Flow Rate	50lpm to 70000 lpm
Filter Fineness	≥ 5 microns
Operating Pressure	22 to 900 psi
Flange	2″ to 40″
Automatic Backwash	yes
Filter Housing	Steel, Stainless Steel, GRPe

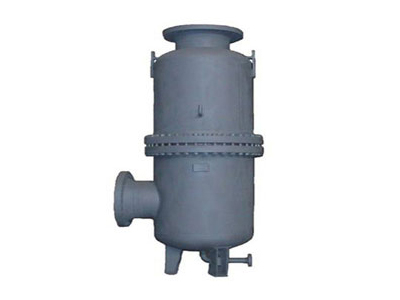

Separator

Spinning Around
A turbo disc in the filter inlet makes the volume flow rotate. Particles are thus separated by centrifugal forces.

Specification
Flow rate	50lpm to 5000lpm
Filter Fineness	≥ 5 microns
Operating Pressure	29 to 900 psi
Flange	2″ to 8″
Filter Housing	Steel, Stainless Steel, Plastic

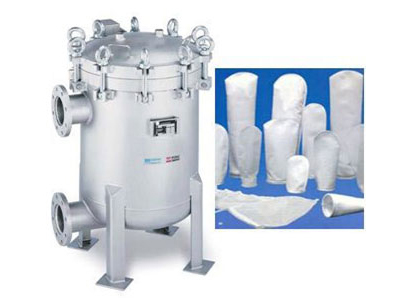

Bag Filter

Everything in a bag
Manual Filter with a filter bag made of different materials, e.g. nylon or needle-felt. A large filtration area and a filtration fineness of ≧ 1 micron characterize this filter

Specification
Flow Rate	0 lpm to 1000lpm
Filter Fineness	> 1 micron
Operating Pressure	0 to 900 psi
Flange	2″ to 4″
Manual Backwash	yes
Filter Housing	Steel, Stainless Steel, Plastic

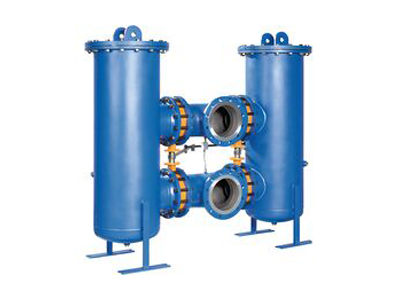

Duplex Filter

One on standby
Manual Filter with a filter bag made of different materials, e.g. nylon or needle-felt. A large filtration area and a filtration fineness of ≧ 1 micron characterize this filter

Specification
Flow Rate	50lpm to 20000lpm
Filter Fineness	> 10 micronsn
Operating Pressure	0 to 260 psi
Flange	1/2″ to 20″
Manual Backwash	yes
Filter Housing	Steel, Stainless Steel, GRP, Plastic
