FLOW MEASUREMENT

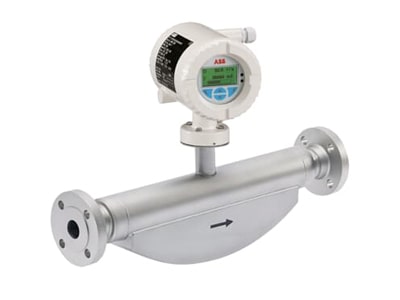

Coriolis Mass Flow Meter
4 … 20 mA current / HART 7.1 output
current output in the event of an alarm can be configured to 21 … 23 mA (NAMUR NE43).
Measuring range: Can be configured between 0.1 … 1 x QmaxDN
Two slots for optional plug-in cards for retrofitting additional current / digital outputs or a digital input.
Parameterization by means of HART communication.
Response time ≥ 1 s, 0 … 99 % as step function (corresponds to 5 τ).
Damping: 0.2 … 100 s configurable (1 τ).
Low flow cut-off: 0 … 5 % for current and pulse output.

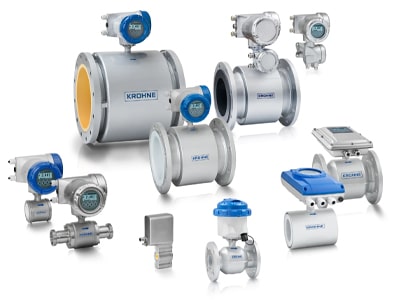

Electromagnetic Flow Meter
Versatile and simple configuration
– Through glass configuration eliminating the need to remove the cover and reducing commissioning time
– Soft key based functionality
– “Easy Set-up” function
State-of-the-art memory technology( Data storage enables transmitter exchange without the need for reconfiguration)
Diagnostics for real-life-situations
– Simplified plant trouble shooting
– Status messages in accordance with NAMUR
– Help texts in LCD display
ScanMaster in situ verification software option( Allows the customer to perform in situ verification of the flowmeter and the plant)

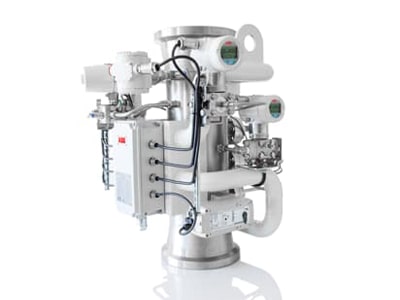

Multiphase Flow Meter
Continuous, real-time measurement
Radioactive-free
Based on conventional instrumentation
80 to 100% GVF operating range
Self-calibrating
Proprietary software
Field mounted or remote (for example, control room) user interface

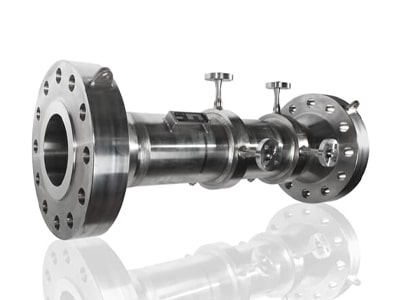

Primary Flow Differential meter
SolveDP enables the sizing of ABB’s entire DP product portfolio using a single software package. In addition to sizing, the software has the capability to generate ordering codes. It is licensed software but the cost of a licence is yet to be released.
Using the licence key supplied and a live internet connection, it also automatically regularly checks for software updates, ensuring that the user’s version of the software is always up-to-date.

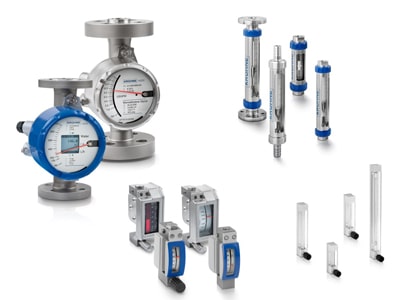

Variable Area Flow Meter
Application(Clean, low viscosity liquids and gases)
Mounting(Vertically, in line or wall mouted)
Connections- 1/4 to 1 in., threaded, vertical or horizontal
Flow ranges– Water flows: 1 to 3000 l/h
Flow turndown– Typically 10:1
Operating pressure – Up to 100 bar (1450 lbf/in 2 g)
Operating temperature – Up to 180 °C (356 °F)
Tube material and float material– Stainless steel

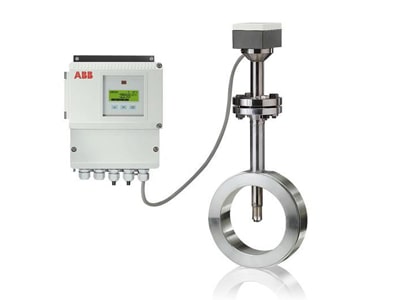

Thermal Mass Flow Meter
Measuring media(Air, Nitrogen, Oxygen, Carbon dioxide, Methane, Hydrogen, Natural Gas, Biogas, Helium, Argon, Propane, Ethane, Ethene, Butane, Ammonia, more gas types on request).
Integral mount transmitter design( single compartment transmitter housing)
Measuring medium temperature( -25 … 150 °C (-13 … 302 °F))
Ambient temperature( -20 … 70°C ( -4 … 158°F)).
– optional -40 … 70 °C (-40 … 158 °F)
– optional -50 … 70 °C (-58 … 158 °F)
Supply Voltage-24 V DC ±20 %

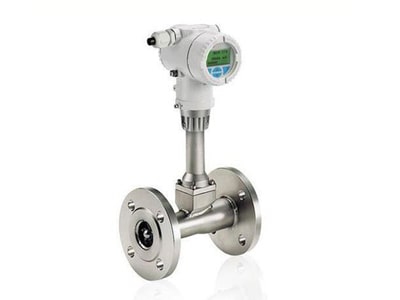

Swirl Flowmeter
Intuitive operation
– Easy Set-up function
– Clear text display
– Meter configuration through the front glass with closed cover
Accuracy for liquids, gases and steam– +/- 0.5 % of rate
Process connection / meter sizes– Flange design / DN 15 to 400 (1/2 to 16 in.)
Approvals for explosion protection– ATEX, IECEx, cFMus, NEPSI
SIL2-certified in accordance with IEC 61508
Output / communication( 4 to 20 mA / HART 7, Modbus RTU-RS485)
Optional binary output– For use as a limit switch, pulse output or frequency output
Optional input from field– Pressure, temperature, methane content, density gas analyzer

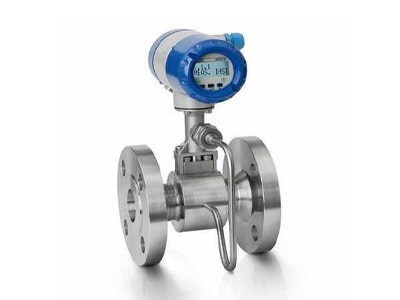

Vortex Flow meter
Intuitive operation(Easy Set-up function, Clear text display, Meter configuration through the front glass with closed cover)
Accuracy for liquids– +/- 0.65% of rate
Accuracy for gases and steam– +/- 0.9% of rate
Process connection / meter sizes
– Flange-mount design / DN 15 to 300 (1/2 to 12 in.)
– Wafer type design / DN 25 to 150 (1 to 6 in.)
Approvals for explosion protection– ATEX, IECEx, cFMus, NEPSI
SIL2-certified in accordance with IEC 61508.
Output / communication
– 4 to 20 mA / HART 7
– Modbus RTU-RS485
Optional input from field– Pressure, temperature, methane content, density gas analyzer.
